I have two routers say Router1 and Router2. My Router1(DHCP:192.168.0.1) is connected to my ISP and has a few devices connected to it. Router2(DHCP:192.168.1.1) is connected to the ethernet port on Router1 with IP address 192.168.0.5 with respect to Router1.

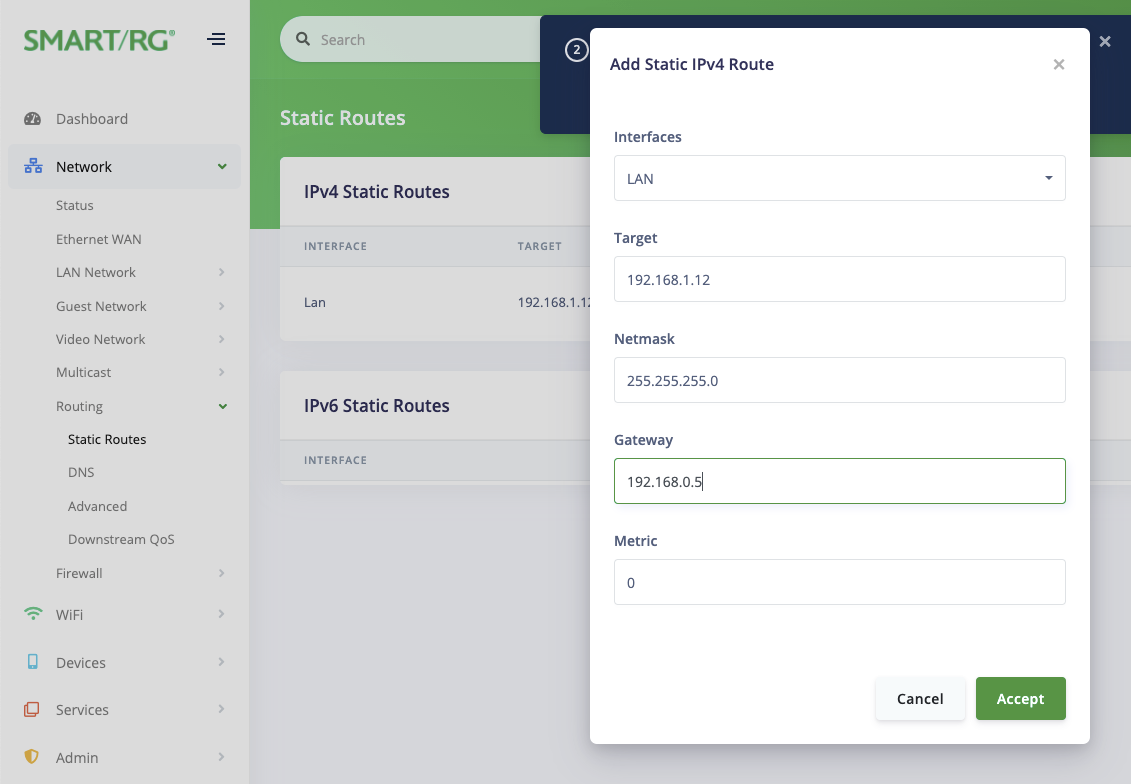

I have a DNS server connected to Router2 with an IP address let’s say 192.168.1.12. I want to create a static route such that Router1(and its connected devices) can access the DNS server connected to Router2. And my configuration looks like the below image but I cannot get it to work(ping from Router1 connected device fails with Request timeout for icmp_seq).
PS:
- Due to few other things running along with the DNS server I cannot move that device to Router1.
- All devices listed here are set to static IP addresses
